Workshop Progress Report: Audio System & Electrical Wiring Installation Phase
The technical log tracks electrical and interior assembly milestones for the Steyr Daimler Puch 230GE restoration project.

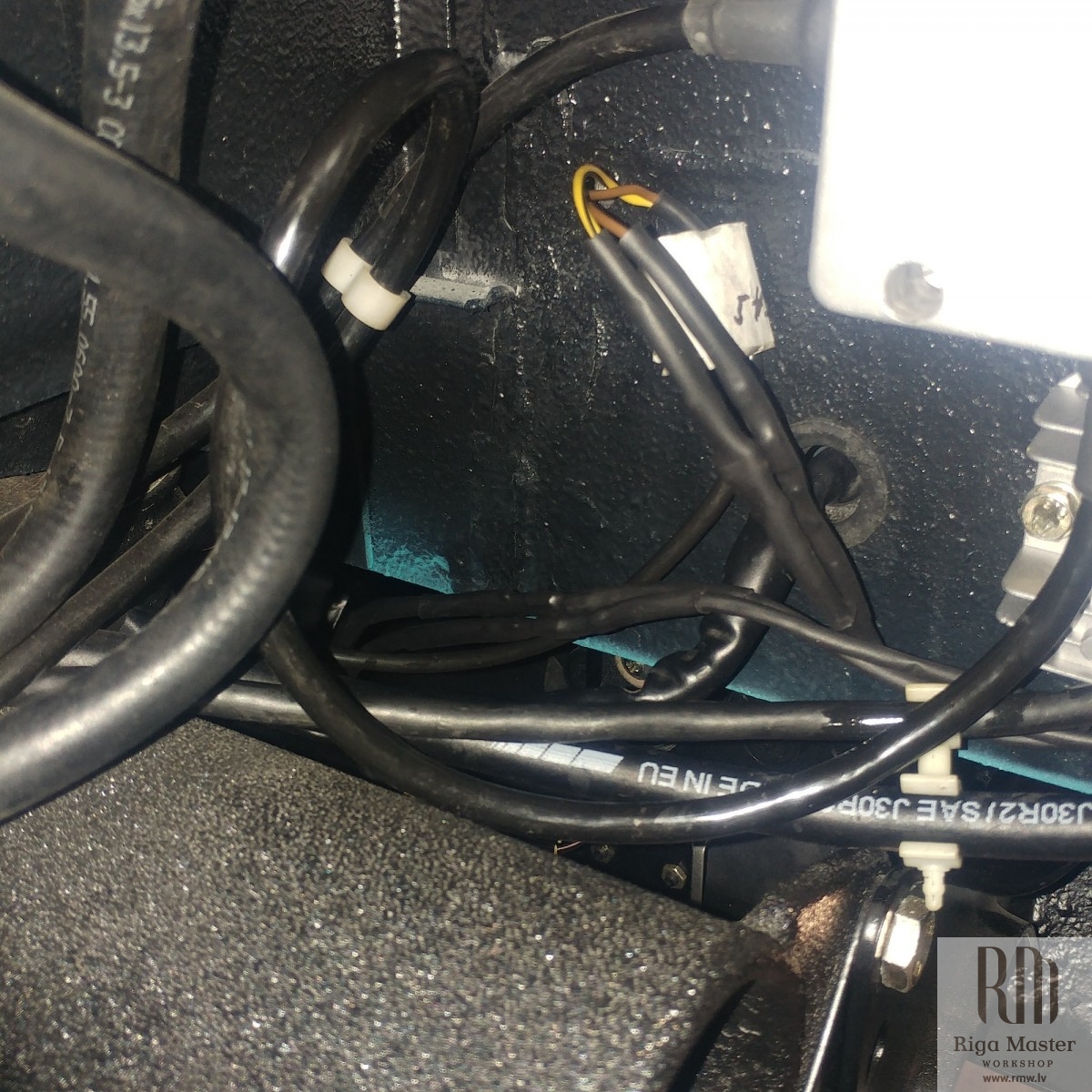

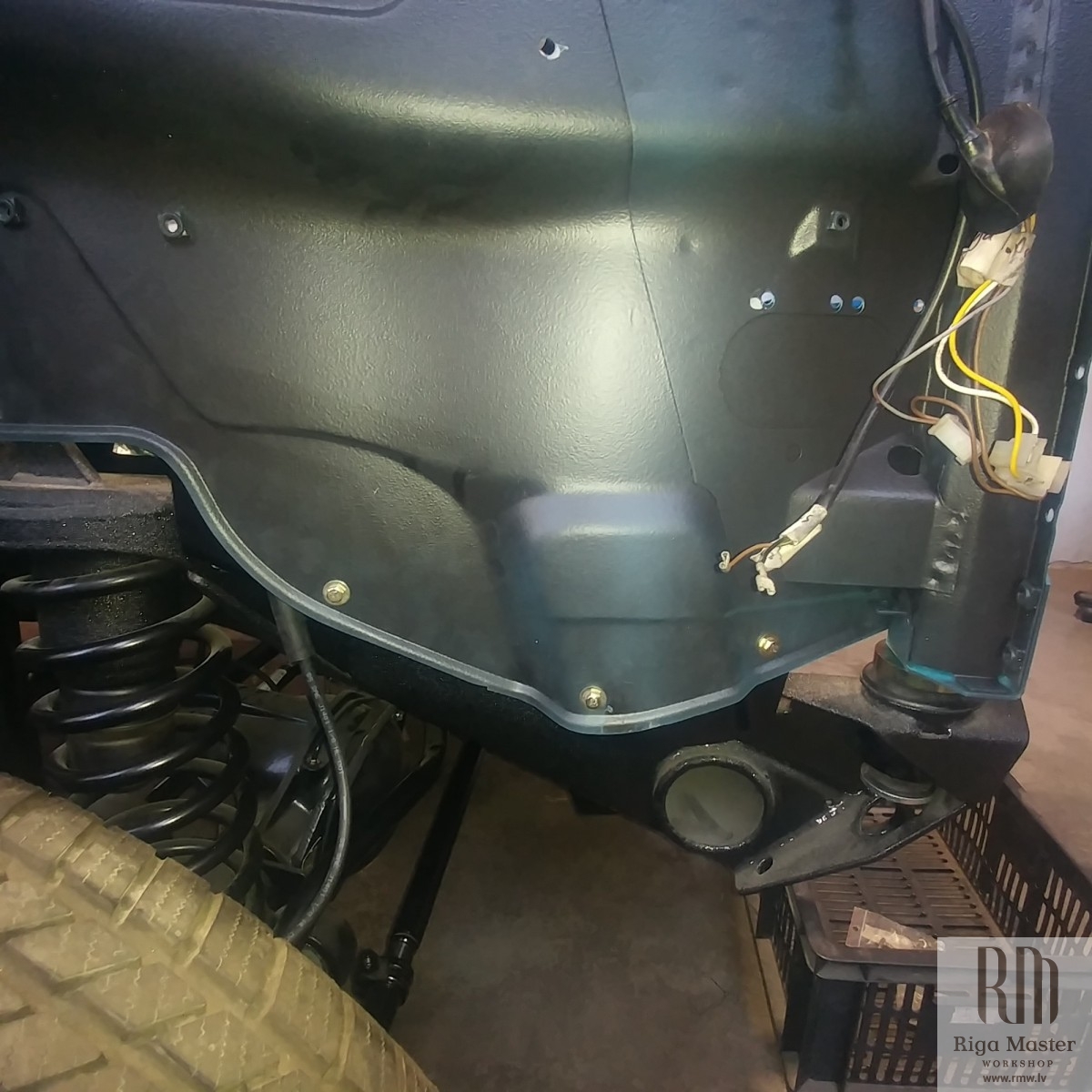

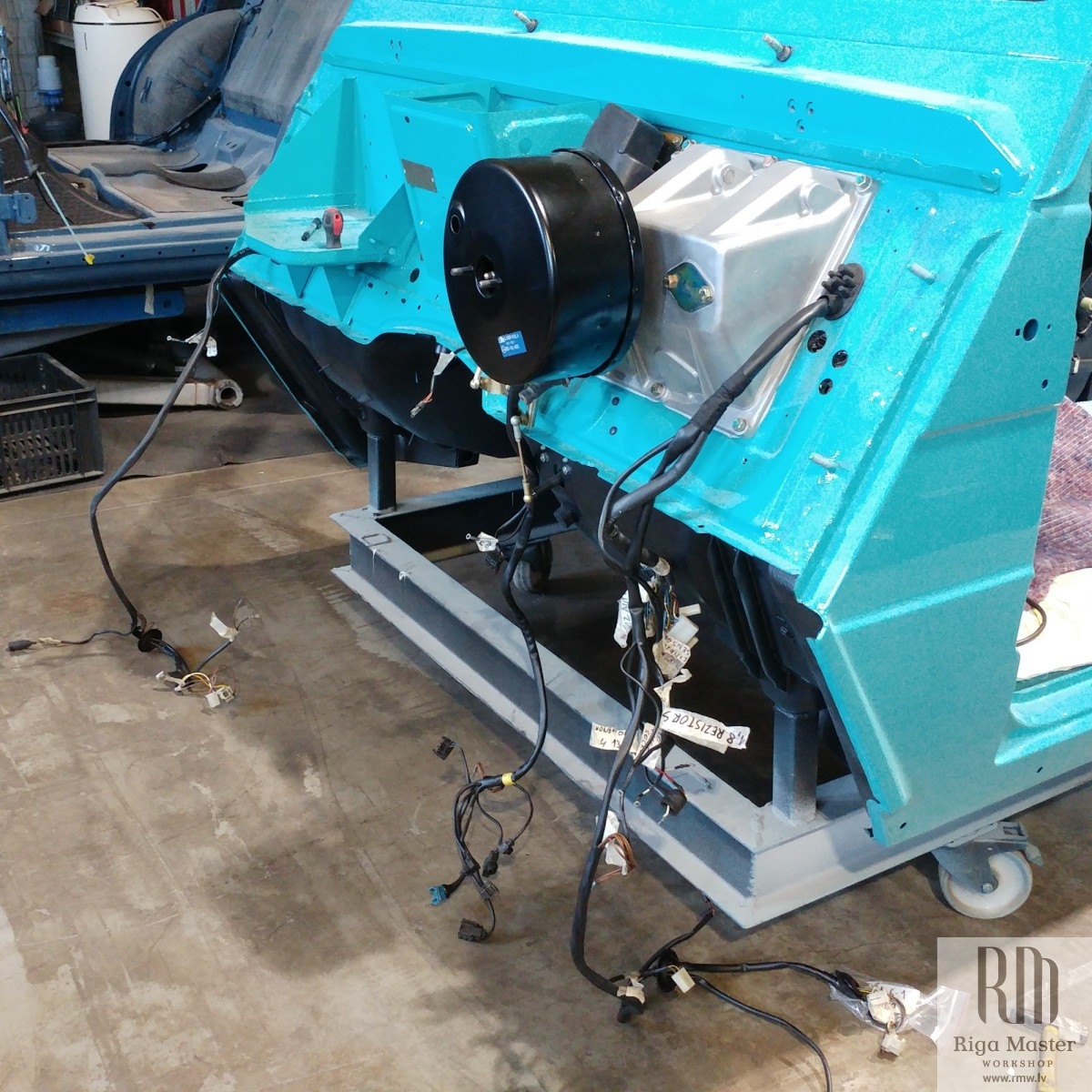

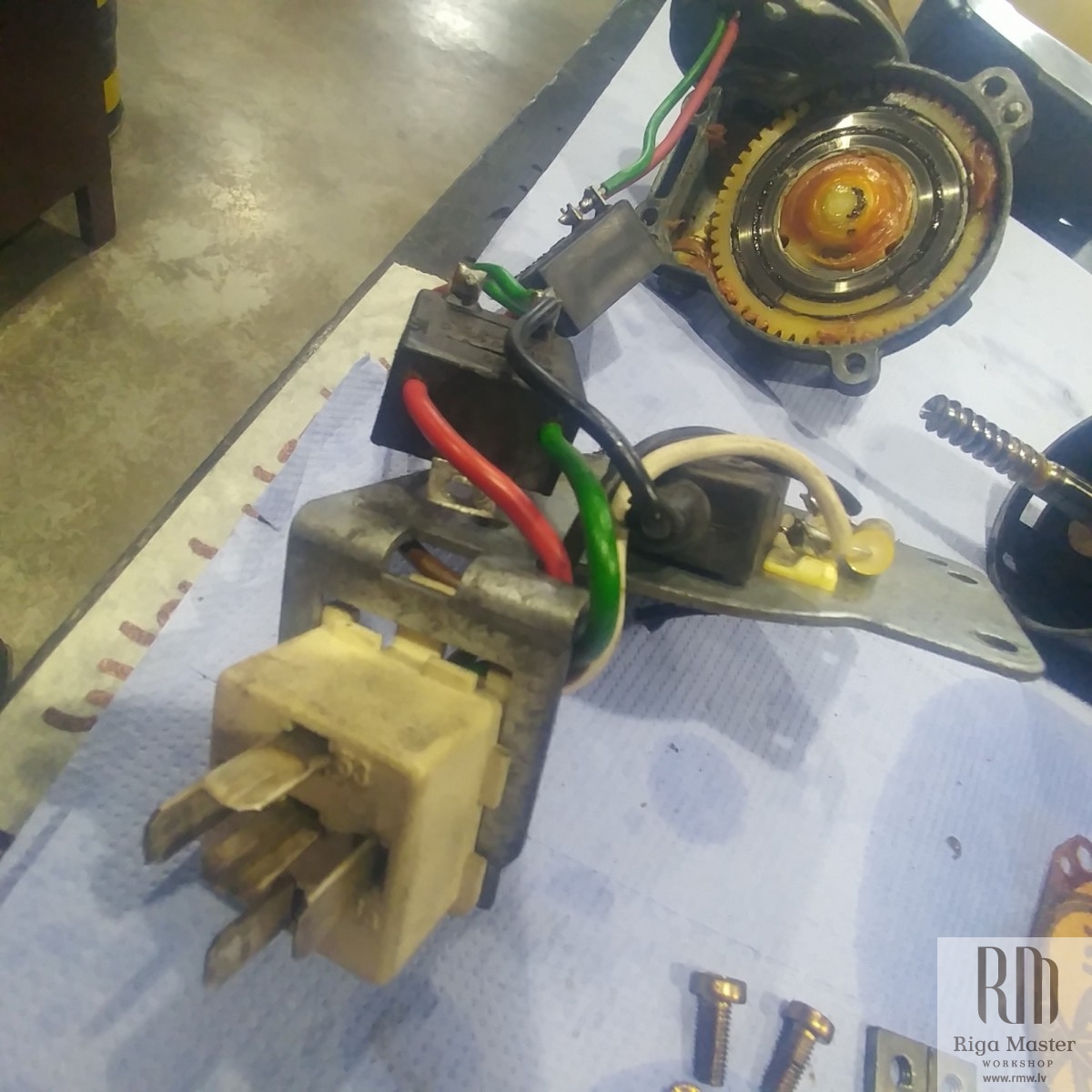

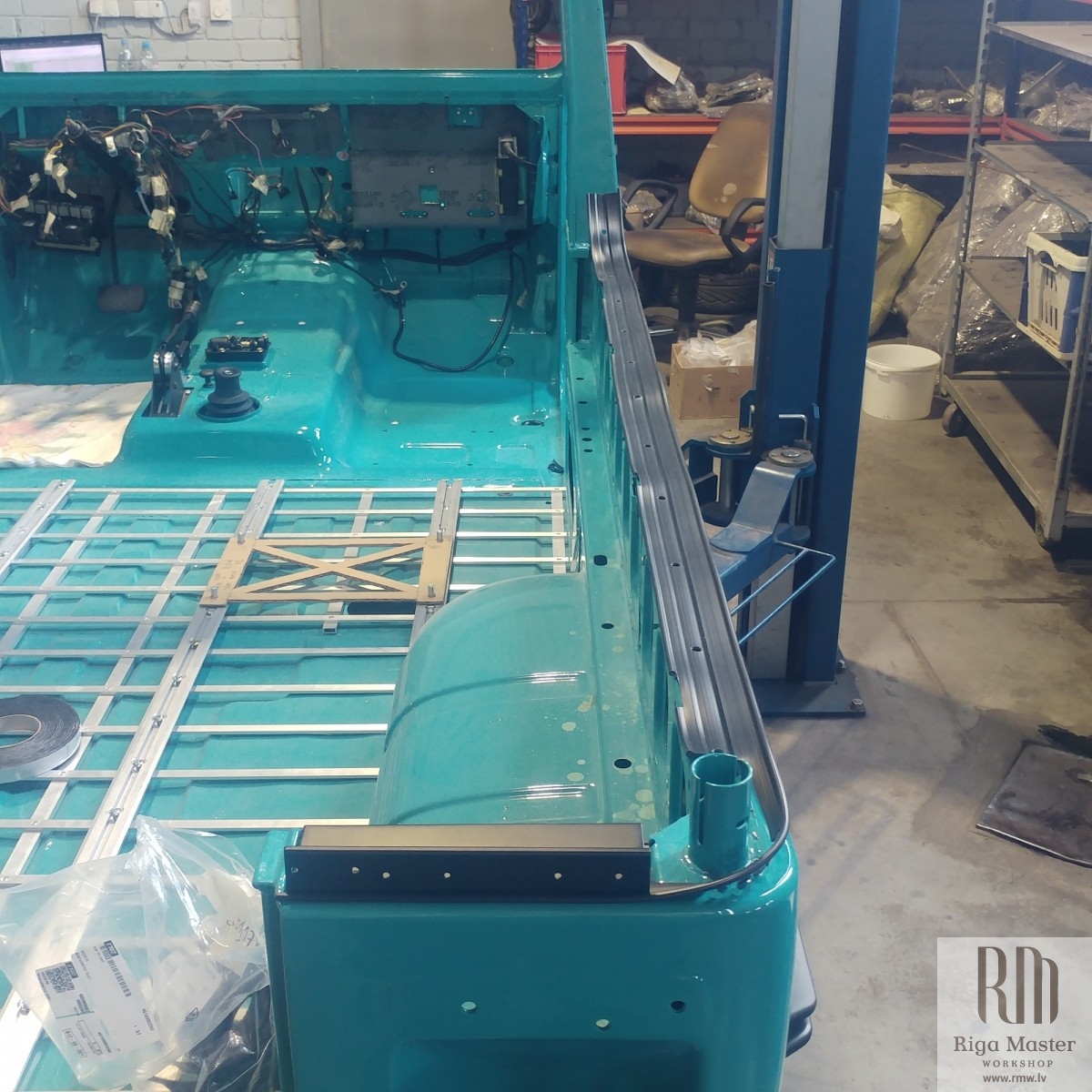

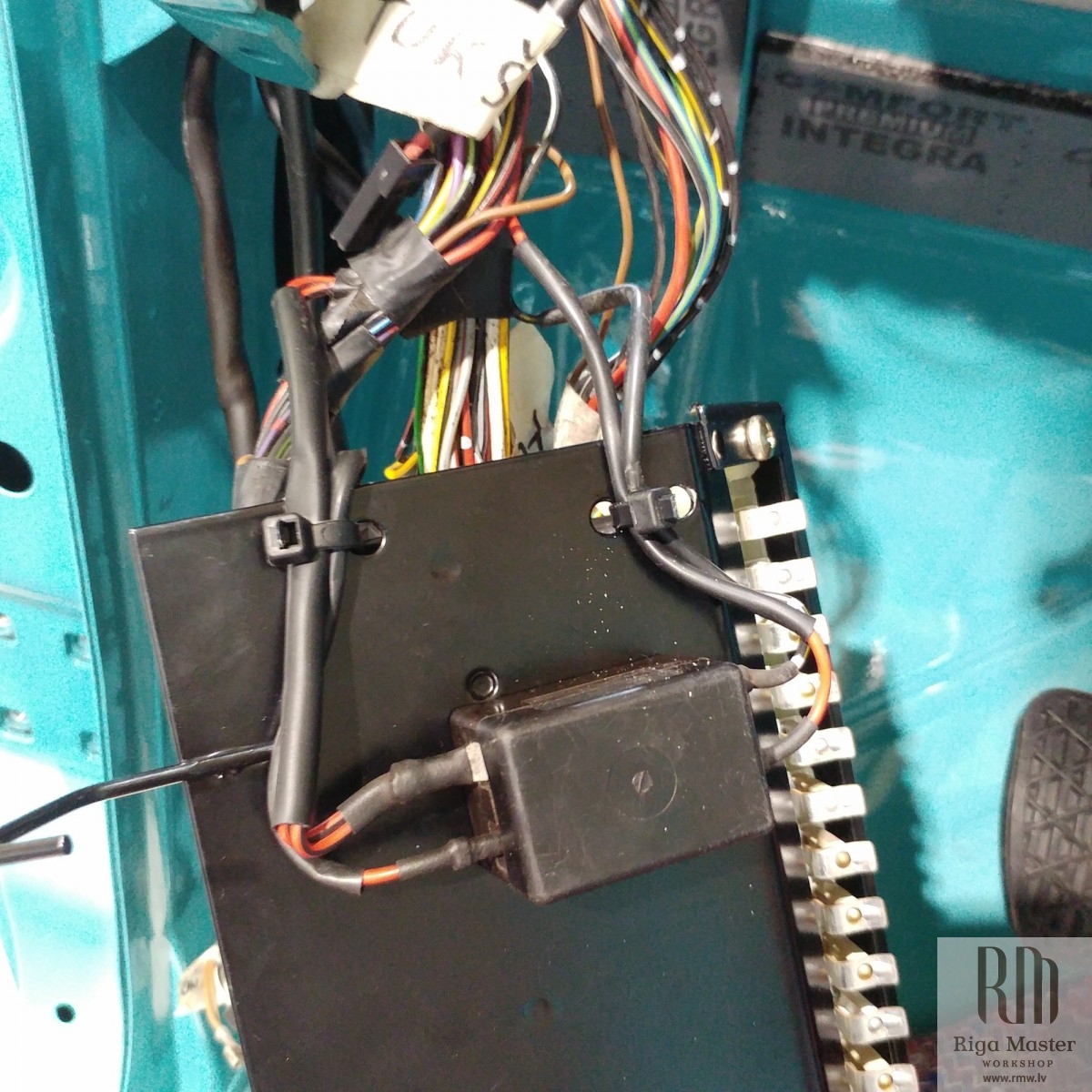

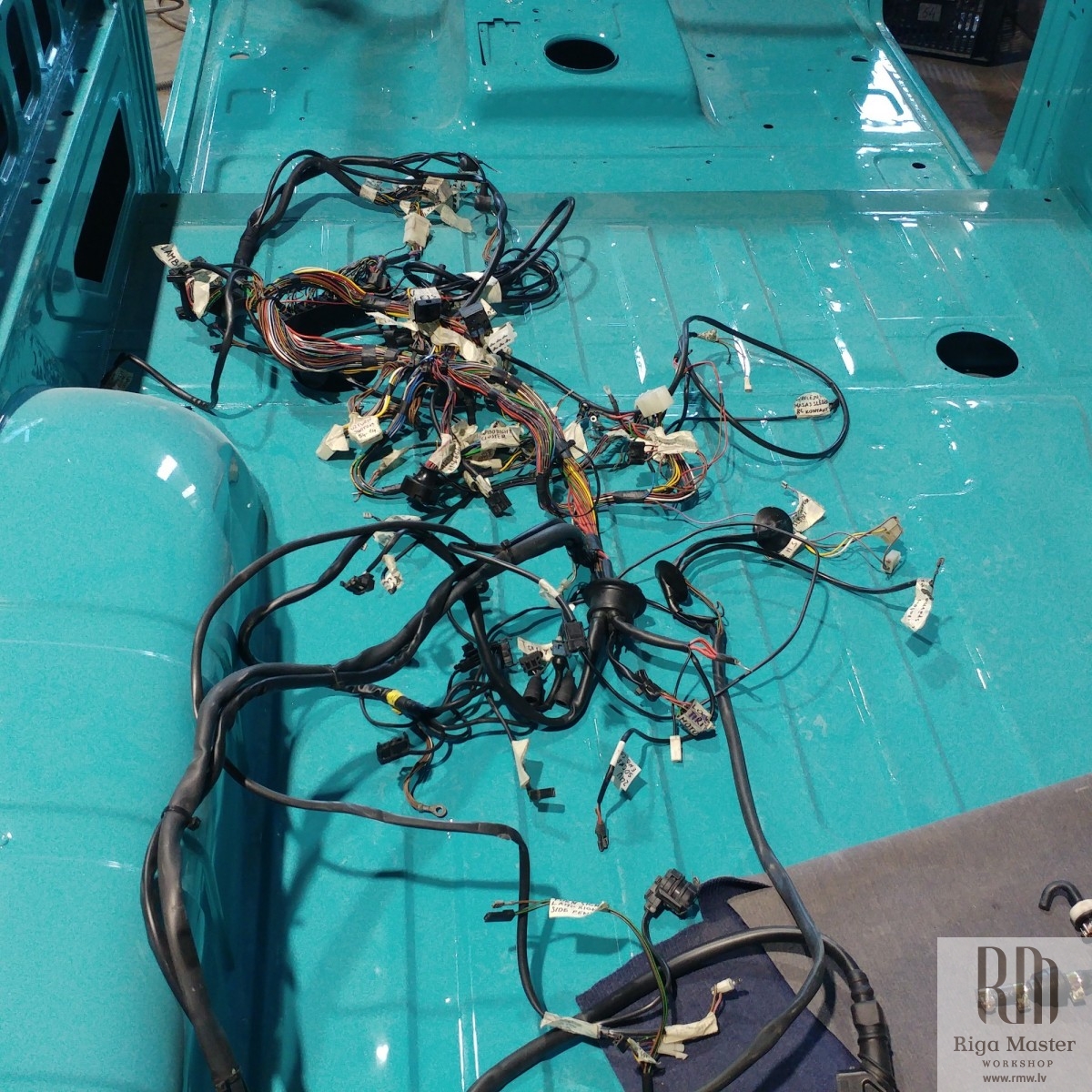

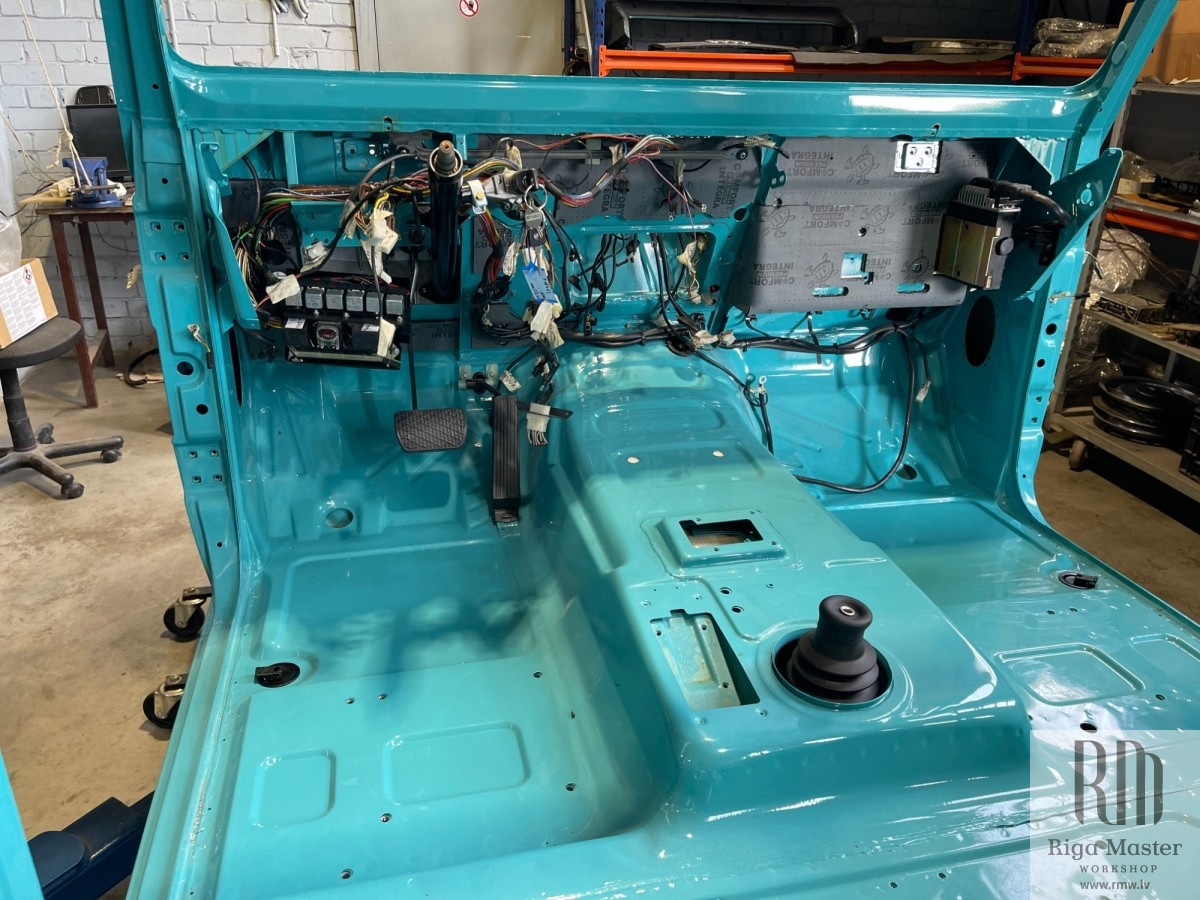

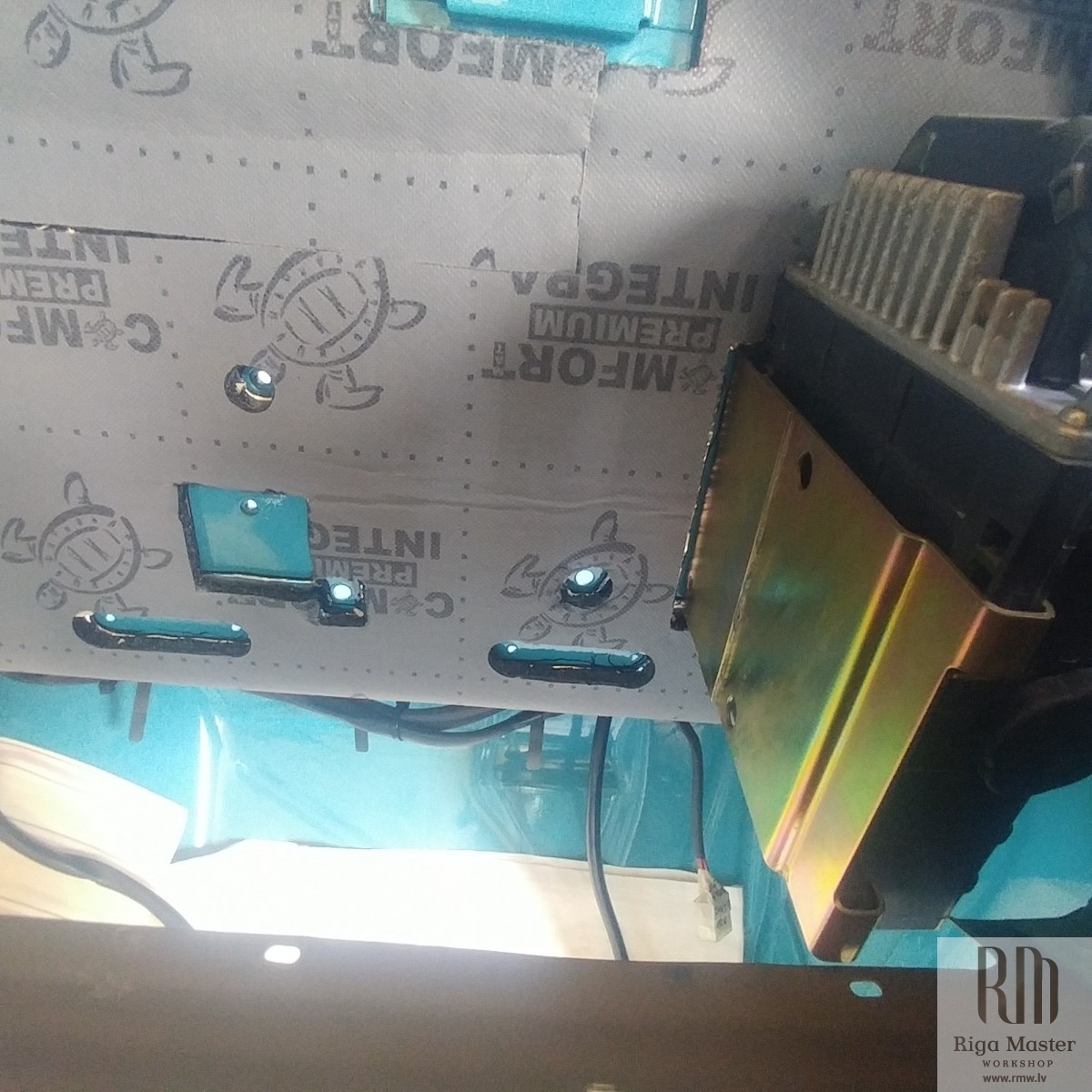

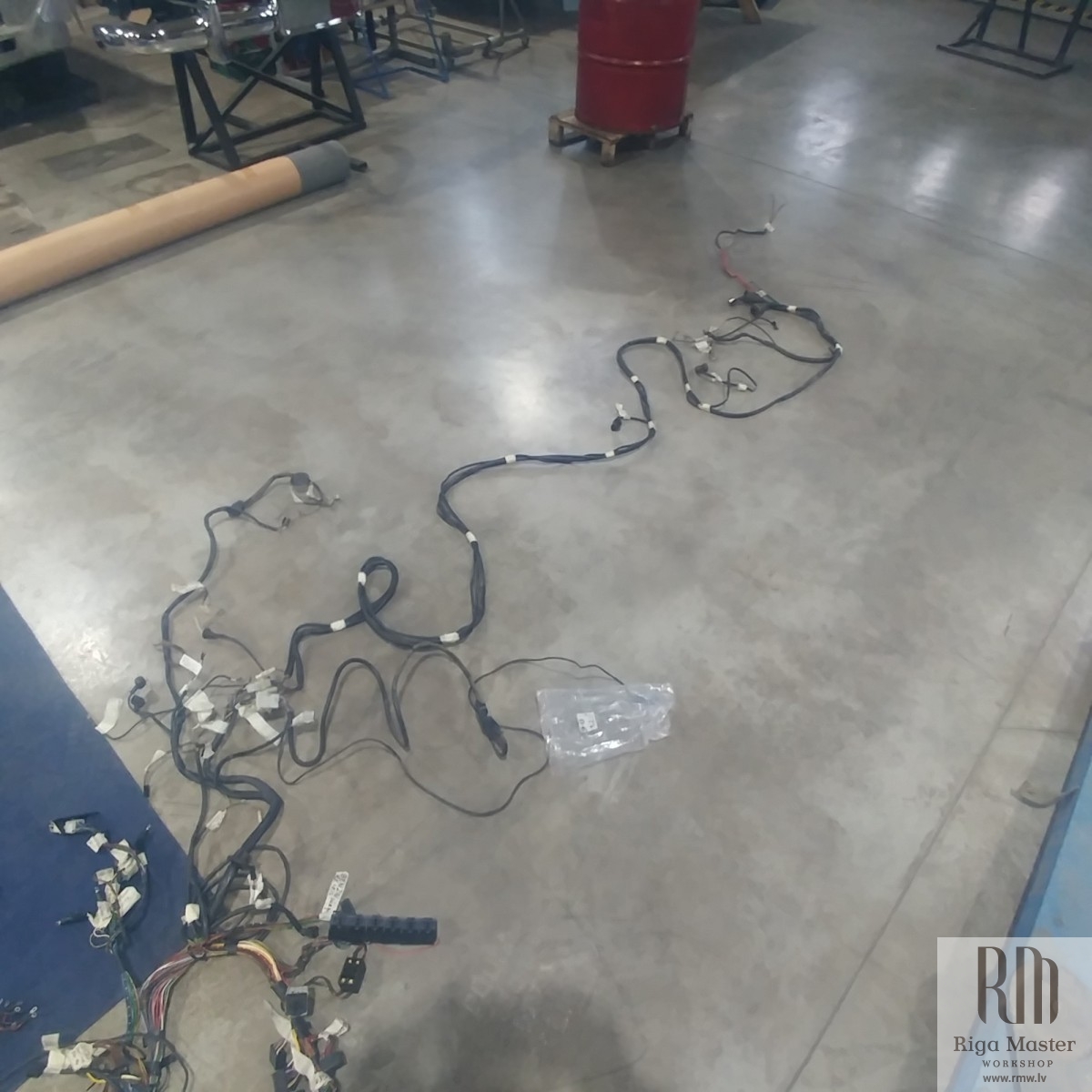

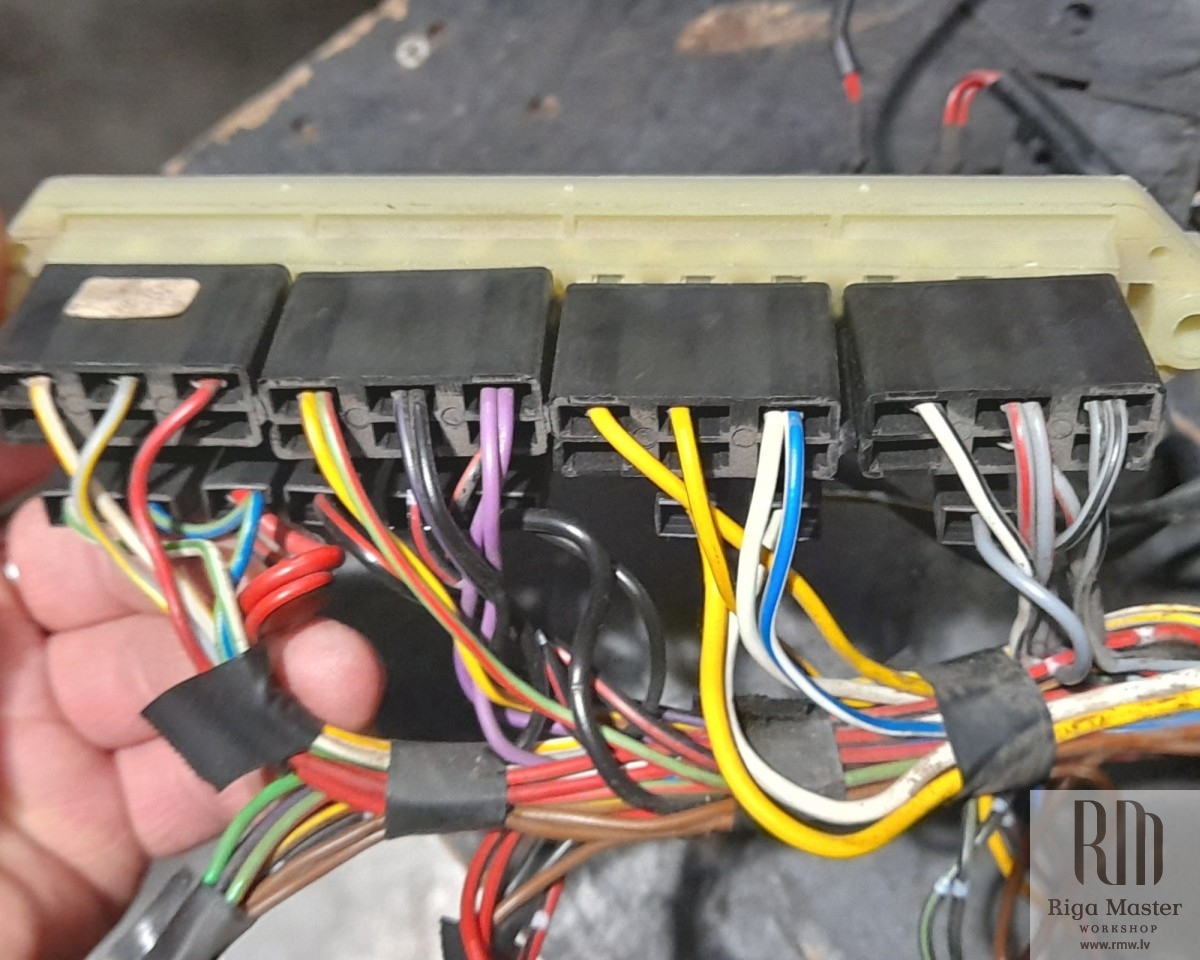

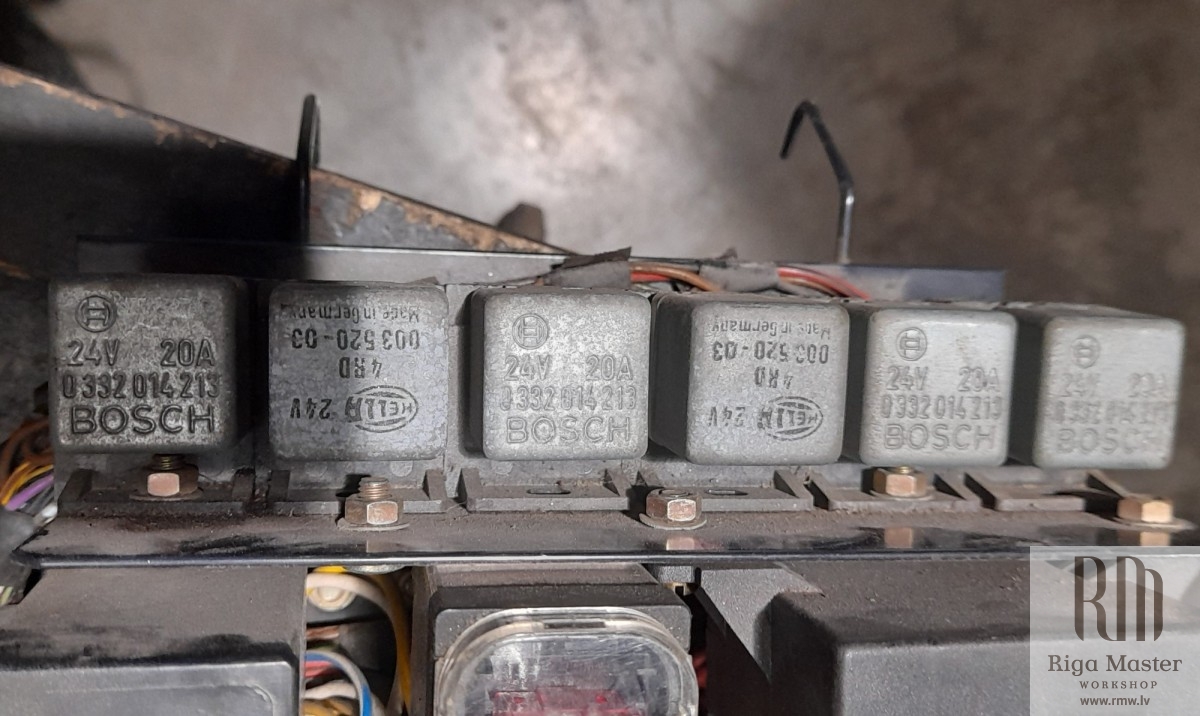

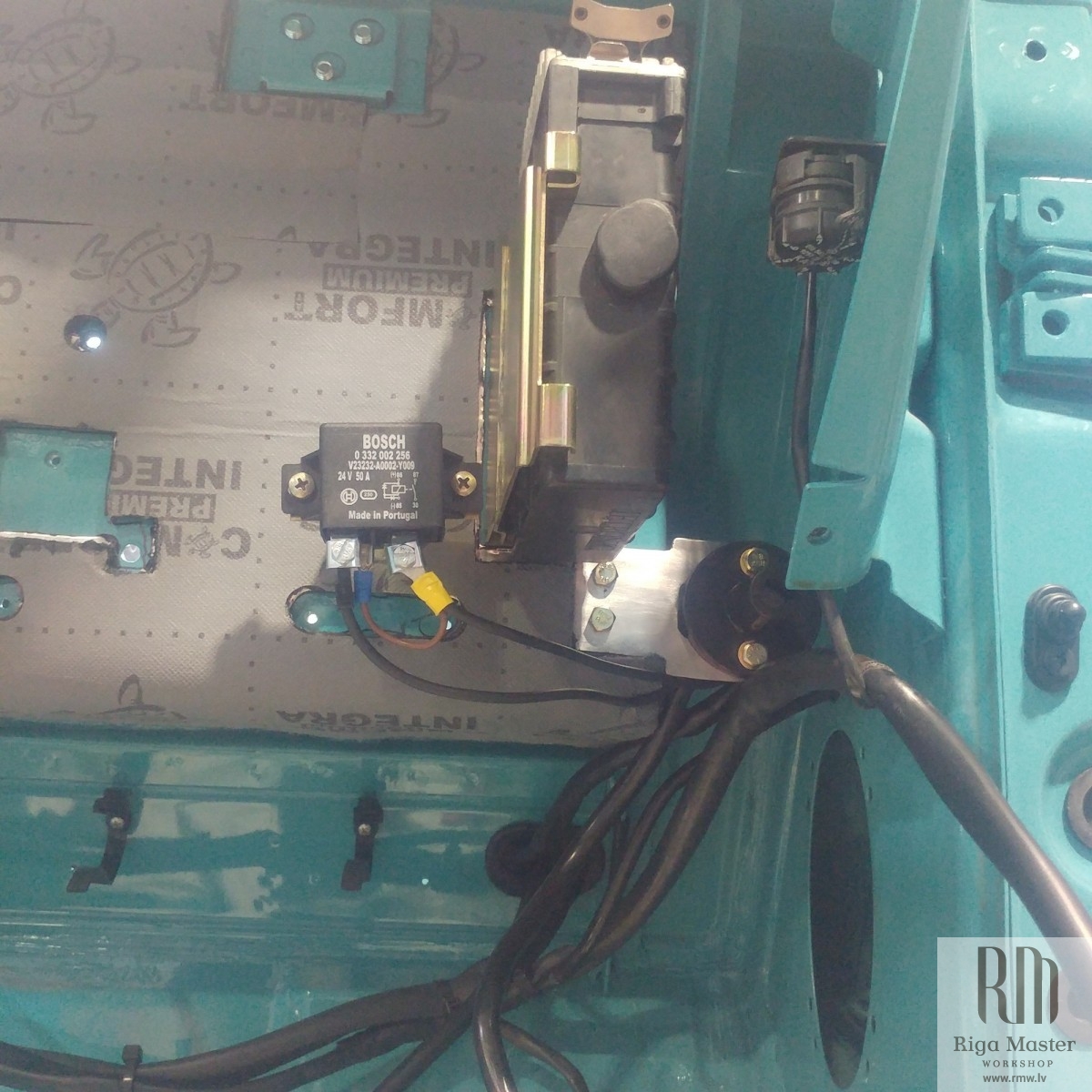

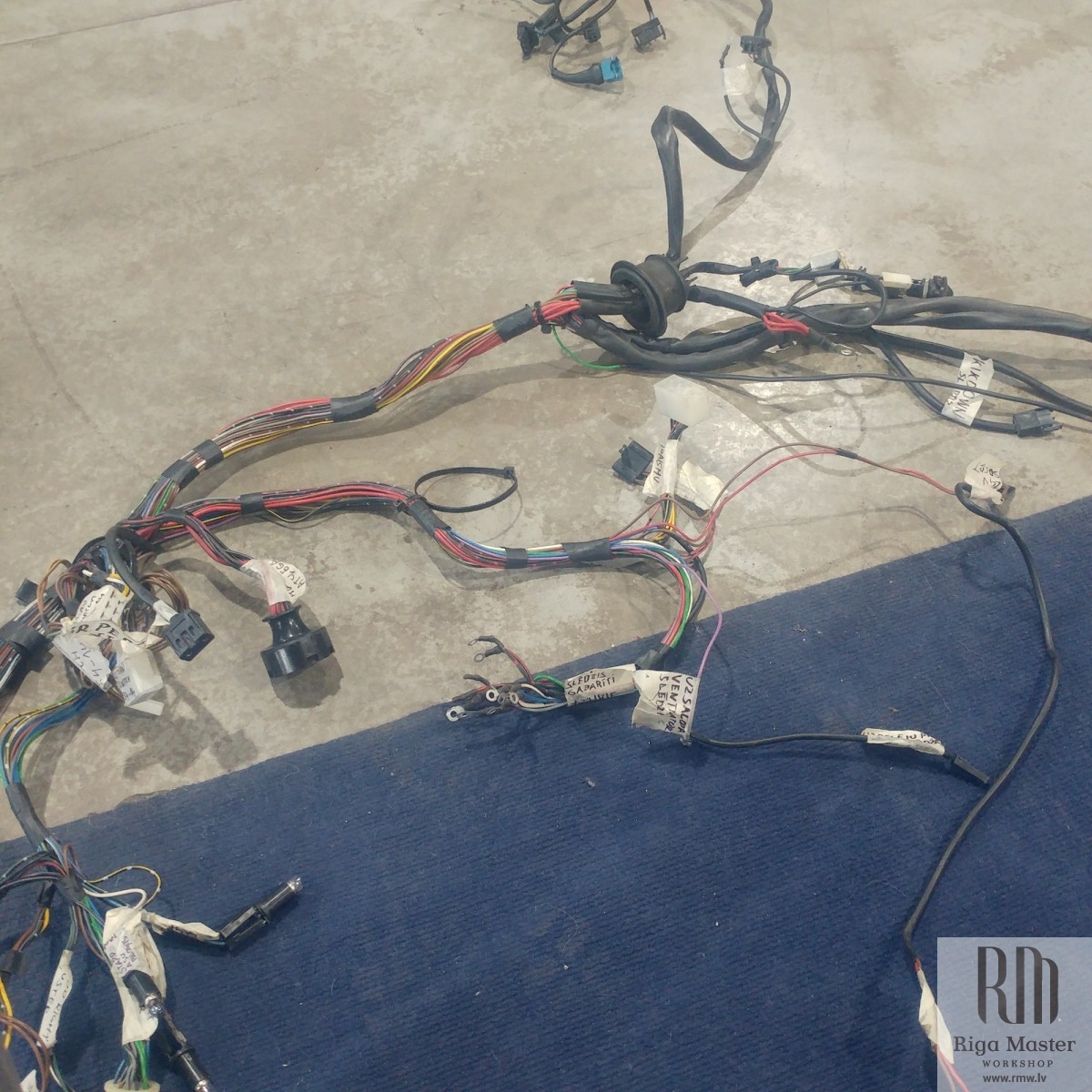

This text describes photographs of the car assembling as work focused on cabin electronics. This week we continued assembling and installing the speakers and wiring. Technicians integrated the classic-style Grand Prix head unit, DAB/FM antenna splitter, and auxiliary relay and fuse block behind the dashboard. Loom harnesses were routed through protected body grommets to the front footwell kick panels and rear side quarters. Coaxial oval speakers were mounted in the front footwell cavities, while round drivers were recessed into the rear bed side panels behind custom quilted leather trim.
All restoration photos are available on the Riga Master Workshop website at: https://www.rmw.lv/page/en/puch-230ge-w461-1990-assembling/
#puch #230GE #w461 #RMW
